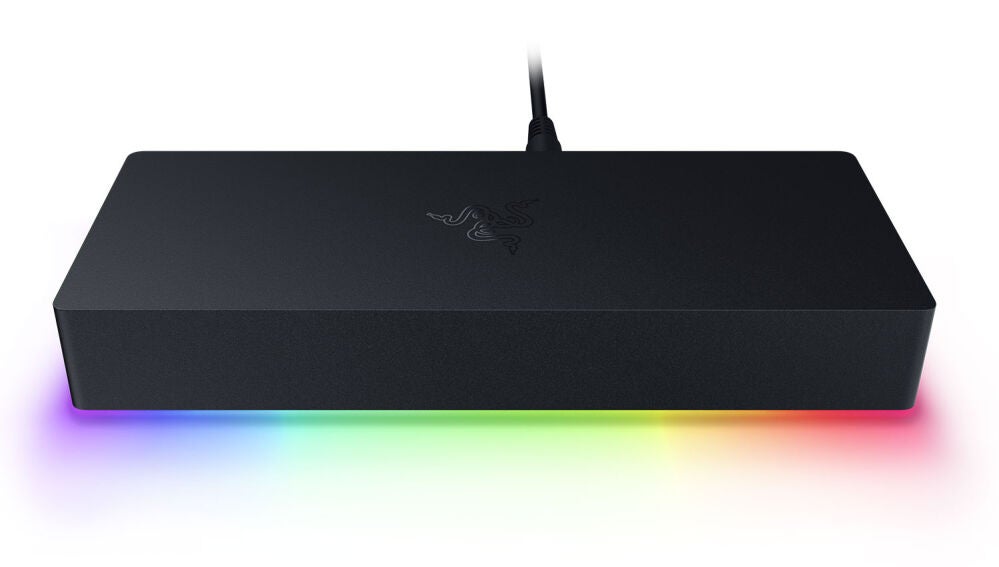

Razer has unveiled its new Thunderbolt 5 Dock, an 11-in-1 desktop connectivity hub designed to simplify laptop setups by driving up to three 4K displays at 144 Hz and housing an internal SSD slot supporting up to 8 TB of storage through a single cable link.
Reporting on the peripheral expansion station, Elric Ruiz of Elsotanoperdido noted that the device aims to resolve the daily inconvenience of manually plugging and unplugging monitors, keyboards, mice, network cables, headphones, and external hard drives whenever a laptop moves between portable use and a desktop workspace.
Razer, headquartered in Irvine, California, manufactures high-performance hardware, systems, and accessories for gamers and creative professionals. Thunderbolt technology, originally developed by Intel in collaboration with Apple, uses versatile USB Type-C connectors to transmit power, high-speed data, and video signals through a single unified connection protocol across compatible computing devices.

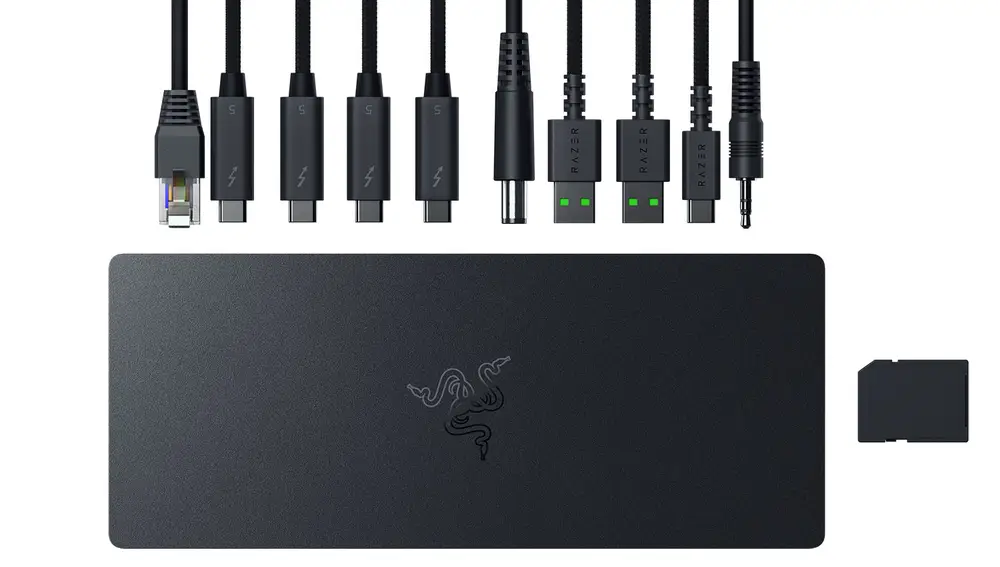

The expansion hub incorporates eleven total connection options to manage desktop hardware. Its physical layout includes three downstream Thunderbolt 5 ports for external devices, one USB-C 3.2 Gen 2 port, two USB-A 3.2 Gen 2 ports, a Gigabit Ethernet jack for wired network access, a UHS-II SD card reader, a 3.5 mm combination audio jack, and an upstream Thunderbolt port dedicated to connecting the dock directly to the host computer.

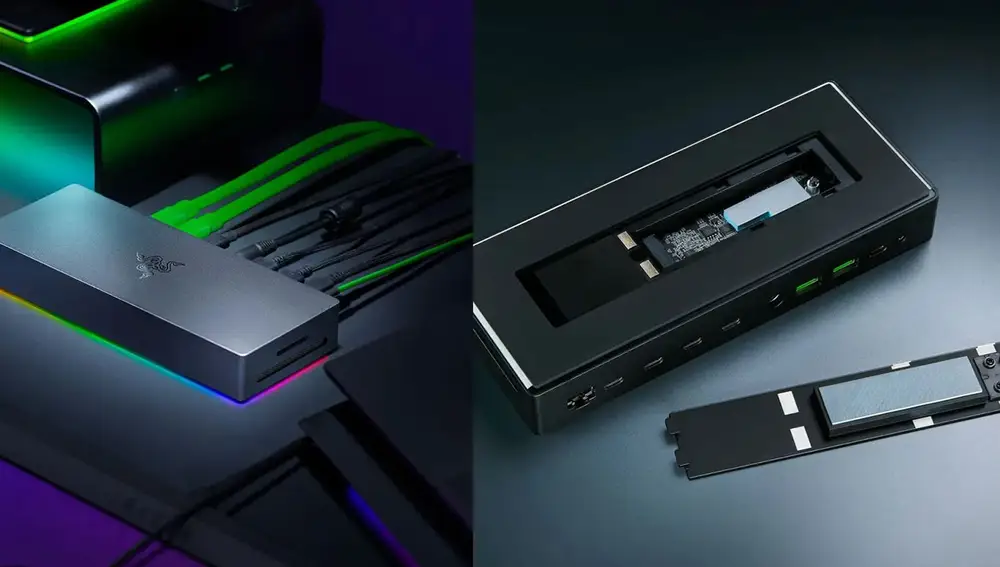

Alongside its external ports, the dock features an internal M.2 PCIe Gen 4 expansion slot capable of accommodating solid-state drives with up to 8 TB of capacity. Ruiz highlighted that because the storage drive is installed physically inside the dock casing itself, users can maintain project files, photo archives, video footage, code repositories, and large datasets on the hub without cluttering their desks with standalone external drives.
M.2 PCIe Gen 4 technology is a compact internal expansion standard widely utilized in desktop computers and laptops to deliver rapid file transfer speeds. By embedding a Gen 4 slot directly into the dock chassis, the hub acts as both a central port manager and a high-speed local storage server whenever the host notebook is connected.
Bandwidth Performance and USB Compatibility
The Thunderbolt 5 standard operates with a baseline bidirectional bandwidth of 80 Gb/s, which doubles the 40 Gb/s maximum theoretical throughput provided by previous Thunderbolt 4 connections. When demanding display configurations require extra capacity, an integrated feature called Bandwidth Boost can dynamically reallocate signal lanes to push unidirectional video transmission speeds up to 120 Gb/s.
This expanded throughput allows connected systems to simultaneously transfer data to fast storage units, manage peripherals, and output to high-resolution monitors without bottlenecking performance, provided the host computer supports those operational rates. Ruiz reported that the dock retains backward compatibility with Thunderbolt 4 host machines and selected USB4 devices, though connected hardware will operate strictly within the interface bandwidth limits of the host system.
Connecting a notebook equipped only with Thunderbolt 4 allows full operational access to the ports on the dock, but it does not upgrade the host laptop to Thunderbolt 5 performance standards or unlock maximum bandwidth caps.
Multi-Monitor Video Output Capabilities

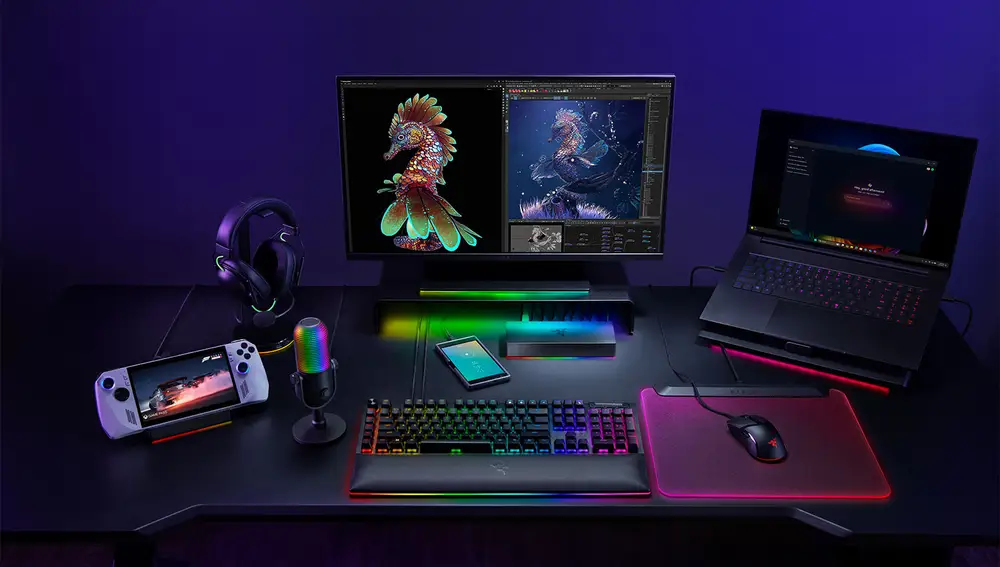

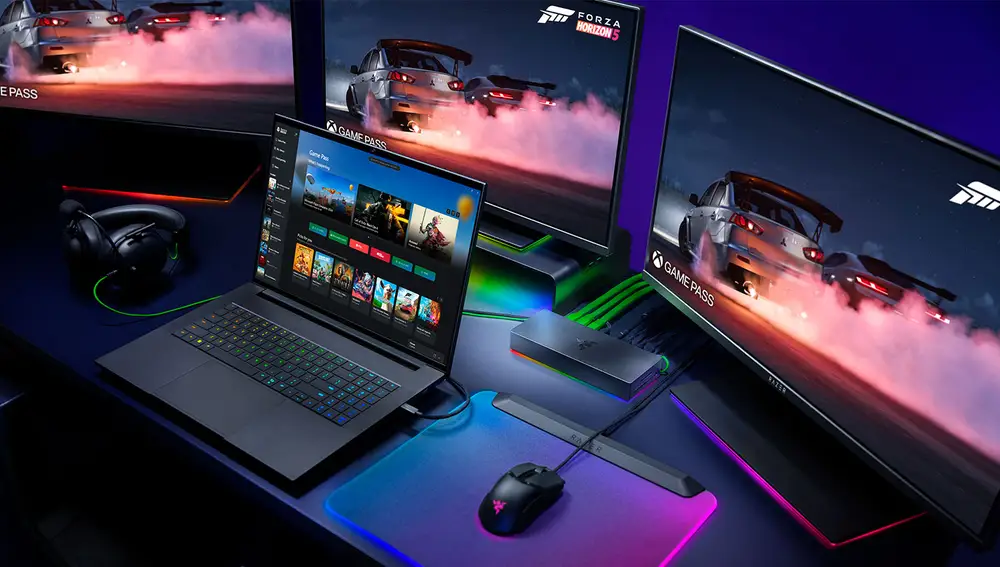

In terms of display capabilities, the Thunderbolt 5 Dock can drive up to three external 4K monitors running at a 144 Hz refresh rate, or a single 8K resolution monitor operating at 60 Hz when paired with compatible host hardware. Ruiz explained that multi-monitor setups allow creative professionals, software engineers, designers, and data analysts to keep multiple applications, command terminals, and documentation open simultaneously without constantly switching active application windows.
For example, video editors can separate editing timelines, video previews, and control palettes across dedicated screens, while programmers can distribute integrated development environments, terminal consoles, and reference material across independent displays.
However, multi-display output remains strictly bound by the graphics processor, display controller, and output channels built into each individual laptop. Ruiz noted that certain Thunderbolt 5 laptops remain hardware-limited to two external screens, meaning dock ownership does not guarantee three active external displays for every host machine.
Additionally, the dock omits full-sized HDMI and DisplayPort connectors. Video signals are output exclusively through the Thunderbolt 5 and DisplayPort Alt Mode compatible USB-C ports, requiring users with traditional HDMI or DisplayPort monitors to utilize adapters or display conversion cables.
Workflow Integration for Content Creators
The inclusion of a UHS-II SD card reader alongside the internal M.2 SSD slot allows photographers and videographers to offload media directly from camera memory cards into local storage. Ruiz noted that if greater storage volume is required, additional high-capacity storage arrays can be attached using the downstream Thunderbolt 5 ports.
Elsotanoperdido emphasized that the dock does not enhance the processing power of the host computer or accelerate video rendering times on its own. Instead, it serves as a centralized junction point that unifies media ingestion, file transfer, and data storage workflows.
The same consolidated workflow applies to software engineering, data science, and artificial intelligence projects. Large code repositories, dataset collections, and machine learning models can reside on the internal M.2 SSD or connected Thunderbolt drives, while multiple monitors display code editors, live terminal feeds, and system monitoring tools.
Dual Computer Control with Thunderbolt Share
The dock also supports Thunderbolt Share, a software feature that enables direct communication between two connected computers. This capability allows users to transfer files between machines and control both systems using a single keyboard and mouse, making it ideal for environments where a laptop and a desktop computer share the same workspace.
Ruiz reported that operating Thunderbolt Share requires both connected computers to run Microsoft Windows 11, feature hardware support for Thunderbolt 4 or Thunderbolt 5, and have the dedicated Thunderbolt Share application installed. Additionally, at least one connected computer or accessory in the setup must carry an active Thunderbolt Share license.
While the hub centralizes connections, Ruiz observed that it does not physically eliminate desktop wiring altogether, as monitors, Ethernet lines, and peripherals still require dedicated cables plugged into the dock itself.
Product Positioning and Daily Usability
By integrating three downstream Thunderbolt 5 ports, an 8 TB M.2 storage slot, a UHS-II SD reader, Gigabit Ethernet, and dual-PC software support, the Razer Thunderbolt 5 Dock positions itself above basic port replicators and USB hubs.
Ruiz concluded that the practical value of the hub depends primarily on the number of peripherals a user owns and how frequently their laptop leaves the desk. For users who move their laptop daily, consolidating all desktop devices into a single Thunderbolt link provides significant cable management and setup convenience.
